The Impact of a Crash

How a 26-lb Defibrillator Becomes a 676-lb Projectile in a Crash

The physics of ambulance crashes are unforgiving, and most EMS crews don’t realize how dangerous their own equipment can become in an instant.

Every year, over 6,000 ambulance crashes occur across the United States. That number alone is significant. But the injuries and fatalities in those crashes aren’t always caused by the impact itself, they’re often caused by equipment inside the ambulance compartment that was never properly secured.

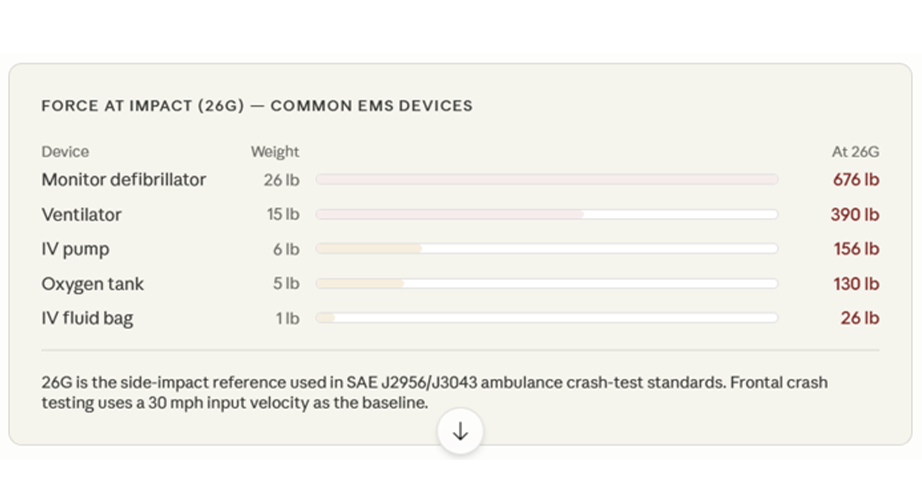

In a frontal crash that occurs when an ambulance travelling at 30 mph comes to a sudden stop, every unsecured object in the patient compartment multiplies its weight by up to 26 times. A medical device weighing 26 pounds doesn’t just fall off a hook. It becomes a 676-pound force travelling at full impact toward whoever is in its path.

The Math Behind the Numbers

G-force is a measure of acceleration relative to free fall. According to SAE crash-test standards, a side impact registers at 26G, roughly equivalent to the forces generated when a 10,000-lb ambulance and a 3,000-lb car collide head-on, each travelling at 55 mph. In that fraction of a second, every pound of unsecured mass exerts 26 pounds of force. It doesn’t matter if the object is large or small.

26G is the side-impact reference used in SAE J2956/J3043 ambulance crash-test standards. Frontal crash testing uses a 30-mph input velocity as the baseline.

Even a one pound IV fluid bag exerts 26 pounds of force at the moment of impact. Now imagine a fully loaded CCT transport: multiple IV pumps clamped to a pole, a ventilator on the stretcher, oxygen tanks secured with straps, a monitor hooked on a small bracket behind the patient. Each of those items represents a significant and preventable risk to the crew and the patient.

The Practices Creating the Risk

EMS crews do the best they can with the equipment and limited time they have. The issue, is that most of the equipment was never designed for transport. Hospital-grade IV poles, standard clamp systems, Velcro straps are all designed to keep equipment out of the way in hospital settings but are not made to withstand the forces of an impact in an ambulance.

As critical care transport has grown, crews are routinely trying to load what amounts to a miniature ICU into an ambulance. Eight IV pumps on a single pole. ECMO machines. Ventilators. The instinct, especially on short transport runs, is to get moving. There isn’t always time to question whether each device is truly transport-rated or whether the mounting solution being used was ever designed for the road.

Standards

Standards from SAE, CAAS, NFPA, and Homeland Security all point back to the same benchmark for what “safe” means in transport. Solutions that meet these standards don’t just reduce risk; they change the culture of how a shift begins. When every device has a designated, crash-rated place, crews use it. Not because they’re told to, but because it is more efficient and ergonomic.
